16针公/母到90针母适配器扁平线obd 2 obd 16针t扁平电缆，故障代码读取
型号︰
CT003-OBD05
品牌︰
COMTECH
原产地︰
中国
单价︰
CNY ¥ 19.2 / 件
最少订量︰
100 件
共有 10 相关信息
产品描述

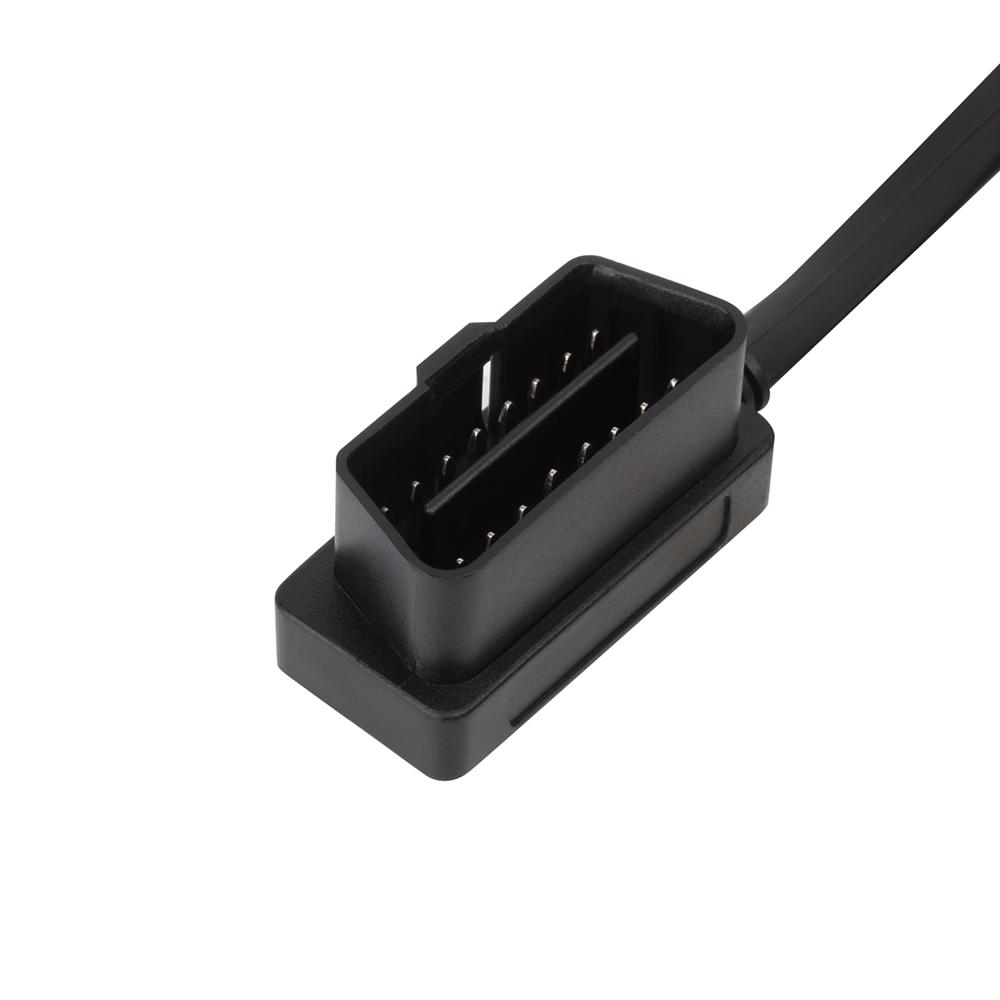

| OBD2 male plug |
standard, 12V / 24V |
| Pins of OBD2 male plug |
copper, nickel-plated or gold-plated |
| Overmold of OBD2 male plug |
slim design, straight |

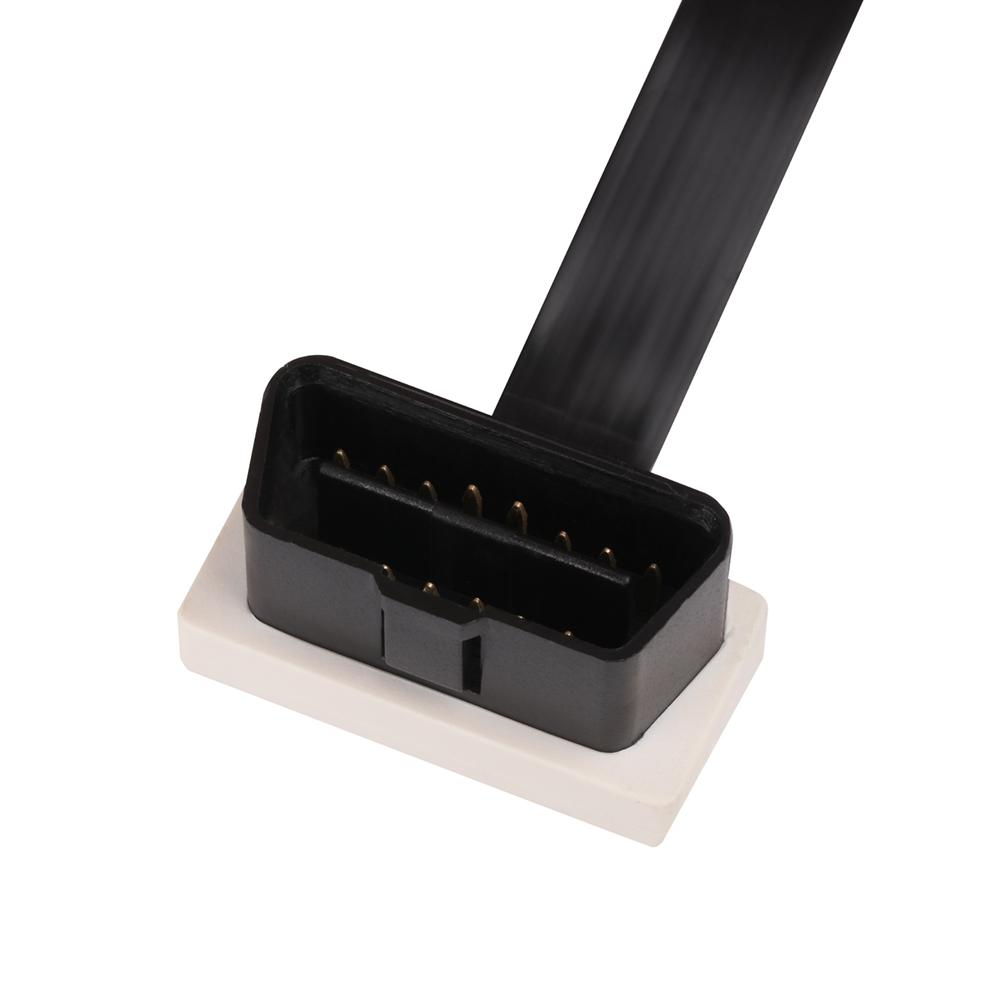

| OBD2 female connectors |
standard |
| Terminals of OBD2 female connectors |
copper, nickel-plated or gold-plated |
| Overmold of OBD2 female connector |
slim design, straight |
| Material of overmolded part |
PVC |
| Cable shape |
flat, thin |
| Wire |
26AWG, pure copper |
| Material of OBD2 male and female connectors |
PA66 |
| Pin assignment or pin out |
customized |
| Cable length |
customized |
| Contact Resistance |
3 ohm max. |
| Insulation Resistance |
5M ohm min. |
| Working Temperature |
−25℃ ~ +85℃ |
| Testing |
100% open, short and miss-wire testing |
| Testing Voltage |
DC300V 5M ohm/10ms |
| Warranty |
1 year |
|
